Soldering Tools

on Tue Aug 14, 2018 8:45 am


The only tools that are essential to solder are a soldering iron and some solder. There are, however, lots of soldering accessories available.Different soldering jobs will need different tools, and different temperatures too. For circuit board work you will need a finer tip, a lower temperature and finer grade solder. You may also want to use a magnifying glass.

Soldering Irons
Soldering Iron. It is a device used for applying heat to melt solder in attaching two metal parts. A soldering iron is composed of a heated metal tip and an insulated handle. Heating is often achieved electrically, by passing a current, supplied through an electrical cord, through a heating element. For electrical work, wires are usually soldered to printed circuit boards, other wires, or small terminals. A low-power iron (15-30 Watts) is suitable for this work.


Soldering Tool Stand
It is a place of the soldering iron to keep them away from flammable materials. The stand often also comes with a sponge and flux pot for cleaning the tip.


Soldering Accessories

Soldering Iron Tips
Try to use the right size tip whenever you can. Smaller wires and circuit boards require small fine tips, and mic cable onto an XLR would need a larger tip. You can get pointed tips, or flat tipped ones (sometimes called 'spade tips'). If you have a solder station with a desolderer, you will also want a range of desoldering tips and cleaners.

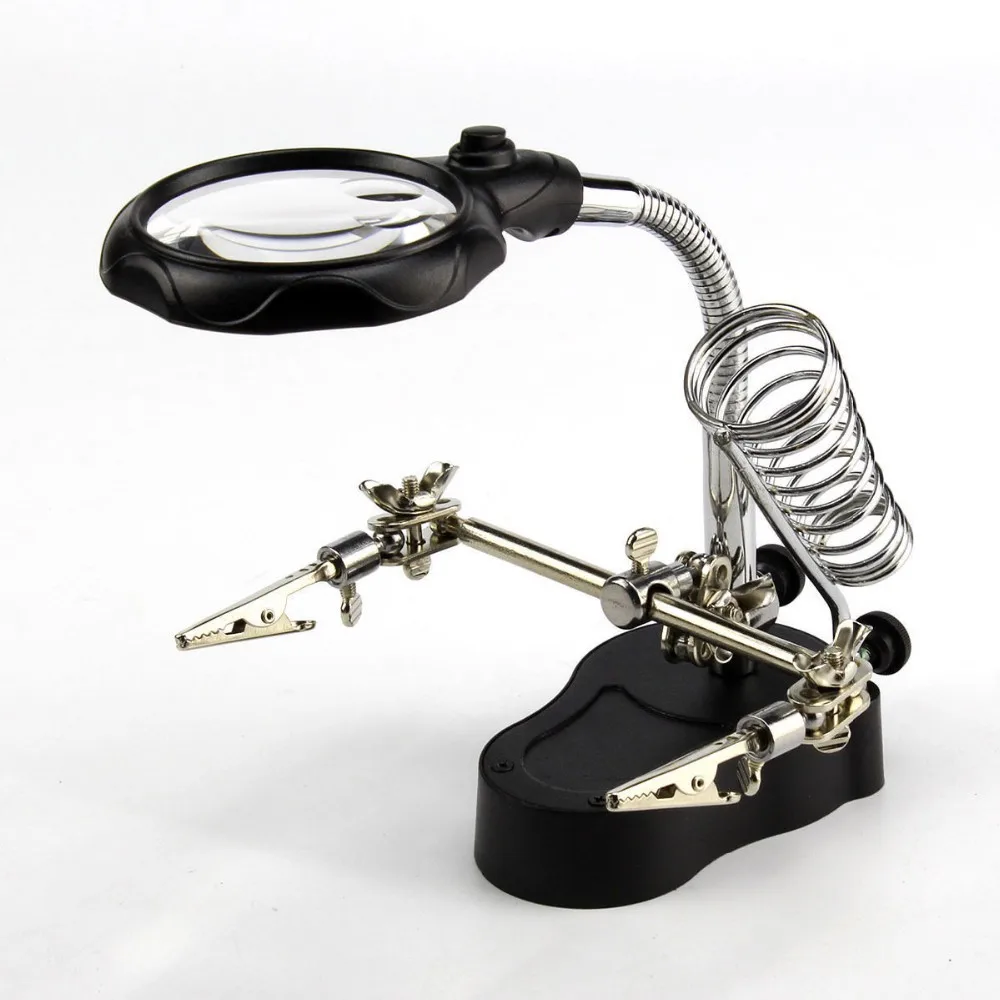

Clamps
Soldering Clamps strongly recommend clamps of some sort. Trying to hold your soldering iron, the solder, and the wire is tricky enough, but when you have to hold the connector as well it is almost impossible. The are however, adjustable clamps that can be manipulated to hold both the connector and the wire in place so you still have two free hands to apply the heat and the solder. These are cheap items, and I know mine have paid for themselves many times over.


Solder Wick
Solder wick is a mesh the you lie on a joint and heat. When it heats up it also melts the solder which is drawn out of the joint. It is usually used for cleaning up solder from tracks on a circuit board, but you will need a solder sucker to clean out the holes in the circuit board. Place the wick on the solder you want to remove then put your soldering iron on top of the wick. The wick will heat up, then the solder will melt and flow away from the joint and into wick.


Solder Suckers
Solder SuckersIf you don't have a solder station with desolderer, and you work on PCB's, you are going to need one of these before too long. They are spring loaded and suck the melted solder out of the joint. They are a bit tricky to use, as you have to melt the solder with your iron, then quickly position the solder sucker over the melted solder and release the spring to suck up the solder. I find solder wick to be easier to use and more effective.
Guru
Posts : 10
Join date : 2018-08-14
View user profile

Re: Soldering Tools

on Tue Aug 14, 2018 9:11 am
Woooooooooooooow amaziing
Guru
Posts : 10
Join date : 2018-08-14
View user profile

Re: Soldering Tools

on Tue Aug 14, 2018 9:12 am
How to know if your soldering iron still works?
Guru
Posts : 10
Join date : 2018-08-14
View user profile

Re: Soldering Tools

on Tue Aug 14, 2018 9:37 am
What are the things to consider in choosing a soldering iron kemper? afro
avatar
Guru
Posts : 10
Join date : 2018-08-14
View user profile

Re: Soldering Tools

on Tue Aug 14, 2018 1:58 pm
What is the typical wattage of a soldering iron used in electronic application?
avatar
Guru
Posts : 10
Join date : 2018-08-14
View user profile

Re: Soldering Tools

on Tue Aug 14, 2018 1:59 pm
What material is used for soldering?
avatar
Guru
Posts : 10
Join date : 2018-08-14
View user profile

Re: Soldering Tools

on Tue Aug 14, 2018 1:59 pm
What tools do you need to solder?
avatar
Guru
Posts : 10
Join date : 2018-08-14
View user profile

Re: Soldering Tools

on Tue Aug 14, 2018 2:00 pm
What is the use of soldering tool stand?
avatar
Guru
Posts : 10
Join date : 2018-08-14
View user profile

Re: Soldering Tools

on Tue Aug 14, 2018 2:01 pm
Where do you put the soldering iron when you have finished with it
avatar
Guru
Posts : 10
Join date : 2018-08-14
View user profile

Re: Soldering Tools

on Tue Aug 14, 2018 2:02 pm
Roughly how long do you have to leave the iron to cool down
avatar
Guru
Posts : 10
Join date : 2018-08-14
View user profile

Re: Soldering Tools

on Tue Aug 14, 2018 2:02 pm
Approximately how far should we stay away from the iron , to avoid being poisoned
Guru
Posts : 10
Join date : 2018-08-14
View user profile

Re: Soldering Tools

on Wed Aug 15, 2018 10:04 pm
igiboyMabangisxD wrote:What is the typical wattage of a soldering iron used in electronic application?

Most of soldering irons used in the electronics are in range 20 – 60 Watts. Soldering iron with wattage 50W is very common these days and it will provide sufficient heat for most of soldering projects on the circuit boards. Soldering irons with higher wattage (40W -60W) are better.
Guru
Posts : 10
Join date : 2018-08-14
View user profile

Re: Soldering Tools

on Wed Aug 15, 2018 10:07 pm
igiboyMabangisxD wrote:Where do you put the soldering iron when you have finished with it

On a Soldering Iron stand maybe?
I think we can create a stand on our own, we could use our creativity. Cheap right? Cool
Guru
Posts : 10
Join date : 2018-08-16
View user profile

Re: Soldering Tools

on Thu Aug 16, 2018 12:35 pm
Do we really need all of this soldering tool to have a good solder?
Guru
Posts : 10
Join date : 2018-08-16
View user profile

Re: Soldering Tools

on Thu Aug 16, 2018 12:43 pm
ekkoekko wrote:Do we really need all of this soldering tool to have a good solder?

I think we just need the soldering iron and Led to have a good solder.
Guru
Posts : 10
Join date : 2018-08-16
View user profile

Re: Soldering Tools

on Thu Aug 16, 2018 12:44 pm
janna wrote:
ekkoekko wrote:Do we really need all of this soldering tool to have a good solder?

I think we just need the soldering iron and Led to have a good solder.

Thanks for answering my question. Smile
Guru
Posts : 10
Join date : 2018-08-16
View user profile

Re: Soldering Tools

on Thu Aug 16, 2018 12:51 pm
What is the most important soldering tool?
Guru
Posts : 10
Join date : 2018-08-16
View user profile

Re: Soldering Tools

on Thu Aug 16, 2018 12:54 pm
janna wrote:What is the most important soldering tool?

For me the most important tool is soldering iron.
Guru
Posts : 10
Join date : 2018-08-17
Age : 19
Location : Dasmariñas, Cavite
View user profile

Re: Soldering Tools

on Fri Aug 17, 2018 6:23 am
For soldering one of the most important thing we need to use is a flux or soldering paste.
Guru
Posts : 10
Join date : 2018-08-17
Age : 19
Location : Dasmariñas, Cavite
View user profile

Re: Soldering Tools

on Fri Aug 17, 2018 6:24 am
And one accurate thing is that you need to come up all materials to do such thing, for our safetiness
Guru
Posts : 10
Join date : 2018-08-17
Age : 19
Location : Dasmariñas, Cavite
View user profile

Re: Soldering Tools

on Fri Aug 17, 2018 6:25 am
We also need to use PPE Proper Protective Equipment.
Guru
Posts : 10
Join date : 2018-08-17
Age : 19
Location : Dasmariñas, Cavite
View user profile

Re: Soldering Tools

on Fri Aug 17, 2018 6:27 am
There are three proper equipment, the gloves, mask and for our eye.
avatar
Guru
Posts : 10
Join date : 2018-08-19
View user profile

Re: Soldering Tools

on Sun Aug 19, 2018 3:38 pm
DRAVEN wrote:How to know if your soldering iron still works?

if it can still melt the soldering the soldering lead
avatar
Guru
Posts : 10
Join date : 2018-08-19
View user profile

Re: Soldering Tools

on Sun Aug 19, 2018 3:41 pm
igiboyMabangisxD wrote:What material is used for soldering?

you need
1. soldering iron
2. soldering lead
3. soldering stand
3 soldering flux
4. soldering paste
5. desoldering pump
avatar
Guru
Posts : 10
Join date : 2018-08-19
View user profile

Re: Soldering Tools

on Sun Aug 19, 2018 3:42 pm
igiboyMabangisxD wrote:Where do you put the soldering iron when you have finished with it


use a soldering stand to place your soldering iron properly
